Intercepting Mobile Apps Over Mobile Data with Burp Suite

The Challenge of Mobile Data

When a mobile device uses mobile data, it operates on a different network than a Burp Suite setup, preventing standard proxy configurations from functioning. To bridge this gap, an internet-accessible tunnel must be established, allowing the device to reach the proxy remotely.

Step-by-Step Guide to Intercept Android Traffic

Step 1: Set Up Burp Suite

Launch Burp Suite

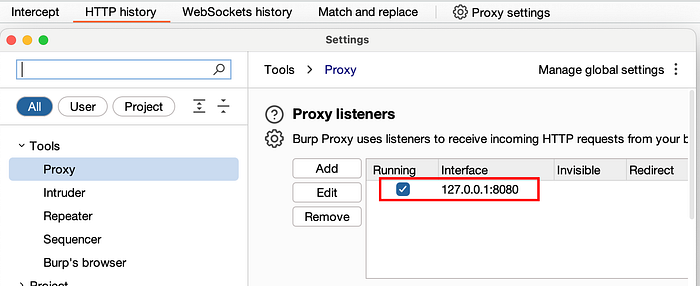

• Open Burp Suite on your machine. Ensure the proxy listener is active at 127.0.0.1:8080.Confirm it is running under Proxy > Options.

Establish an Ngrok Tunnel

• Download and install Ngrok from the official Ngrok website.
• Authenticate your Ngrok installation using your auth token by running:

ngrok config add-authtoken XXX

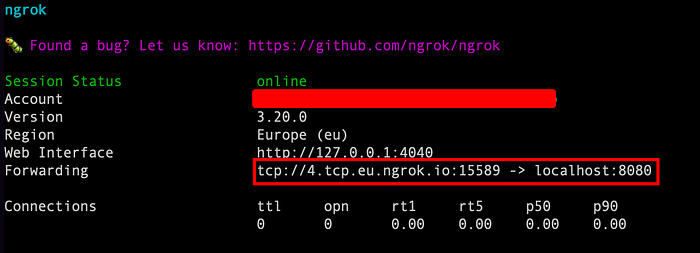

• Create a TCP tunnel linked to your Burp Suite’s local proxy:

ngrok tcp 8080

• Note down the generated endpoint URL provided by Ngrok

Step 2: Configure Your Android Device

Install a Proxy Application

• Download a proxy management app such as Super Proxy from the Play Store.

Configure Proxy Settings

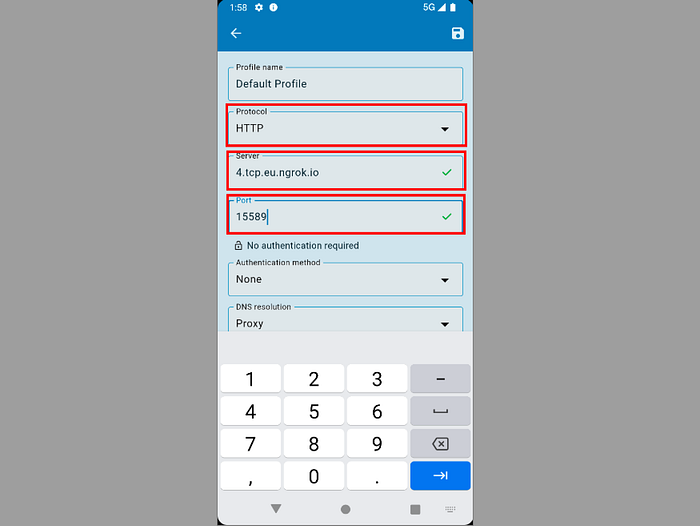

• Open your proxy application and create a new proxy profile with these settings:

Parameter Value Type HTTP Host Your Ngrok hostname & Port Your Ngrok port

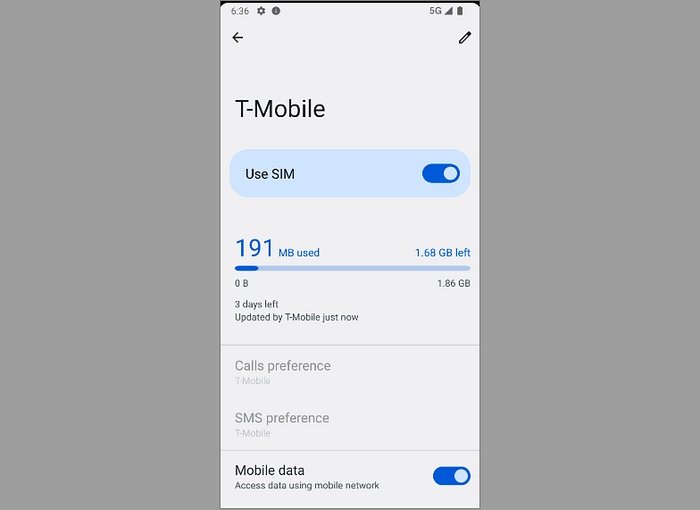

• Activate this proxy profile while connected via cellular data.

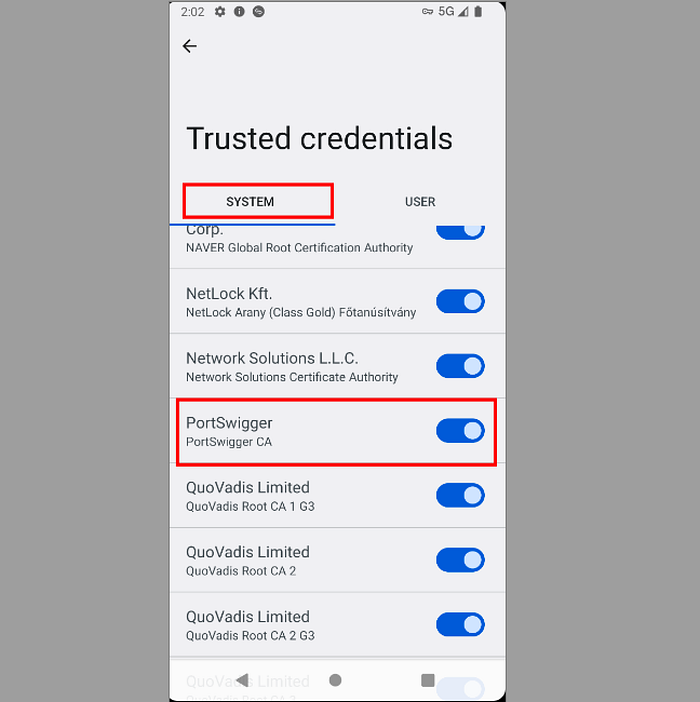

Install the CA Certificate (For HTTPS Inspection)

• To intercept HTTPS traffic, install Burp Suite’s CA certificate on your Android device. The process varies based on your Android version and device manufacturer.
• Typically, download the certificate by navigating to http://burp while connected through the proxy and install it as a trusted certificate on root of your device.

Step 3: Test and Verify the Setup

• Open Burp Suite and go to the HTTP History tab.
• Generate network traffic on your Android device by using apps or browsing the web.
• If the traffic appears in Burp Suite, your configuration is successful.

Alternative Solutions for Private or Internal Projects

For situations where Ngrok isn’t ideal (e.g., internal corporate environments), you can self-host solutions or set up your own VPN using OpenVPN or WireGuard for secure and controlled traffic interception.

And that’s a wrap — until next time, keep exploring, keep learning!
